The Java Paradigm

"Write once, run anywhere"

1 / 25

Computers

3 / 25

Computers

Definition

"People don't have buttons and a computer does"

-Some little kid from PS-272 in Brooklyn in the 1980s

4 / 25

Computers

Definition

"People don't have buttons and a computer does"

-Some little kid from PS-272 in Brooklyn in the 1980s

A computer is any device, entity, or object that can perform computations.

4 / 25

Computers

Definition

"People don't have buttons and a computer does"

-Some little kid from PS-272 in Brooklyn in the 1980s

A computer is any device, entity, or object that can perform computations.

4 / 25

Computers

Definition

"People don't have buttons and a computer does"

-Some little kid from PS-272 in Brooklyn in the 1980s

A computer is any device, entity, or object that can perform computations.

4 / 25

Computers

Definition

"People don't have buttons and a computer does"

-Some little kid from PS-272 in Brooklyn in the 1980s

A computer is any device, entity, or object that can perform computations.

4 / 25

Computers

Definition

"People don't have buttons and a computer does"

-Some little kid from PS-272 in Brooklyn in the 1980s

A computer is any device, entity, or object that can perform computations.

4 / 25

Computers

Definition

"People don't have buttons and a computer does"

-Some little kid from PS-272 in Brooklyn in the 1980s

A computer is any device, entity, or object that can perform computations.

4 / 25

Processor

5 / 25

Processor

The processor is the part of an electronic computer that does the computation.

5 / 25

Processor

The processor is the part of an electronic computer that does the computation.

At any given moment, a processor only does one of a few different types of things.

5 / 25

Processor

The processor is the part of an electronic computer that does the computation.

At any given moment, a processor only does one of a few different types of things.

  • jump to a particular location in memory
5 / 25

Processor

The processor is the part of an electronic computer that does the computation.

At any given moment, a processor only does one of a few different types of things.

  • jump to a particular location in memory

  • read a number from RAM

5 / 25

Processor

The processor is the part of an electronic computer that does the computation.

At any given moment, a processor only does one of a few different types of things.

  • jump to a particular location in memory

  • read a number from RAM

  • save a number to RAM

5 / 25

Processor

The processor is the part of an electronic computer that does the computation.

At any given moment, a processor only does one of a few different types of things.

  • jump to a particular location in memory

  • read a number from RAM

  • save a number to RAM

  • add two numbers together

5 / 25

Processor

The processor is the part of an electronic computer that does the computation.

At any given moment, a processor only does one of a few different types of things.

  • jump to a particular location in memory

  • read a number from RAM

  • save a number to RAM

  • add two numbers together

  • compare two numbers to see which is larger

5 / 25

Processor

The processor is the part of an electronic computer that does the computation.

At any given moment, a processor only does one of a few different types of things.

  • jump to a particular location in memory

  • read a number from RAM

  • save a number to RAM

  • add two numbers together

  • compare two numbers to see which is larger

  • send a number to a particular device (e.g. a monitor)

5 / 25

Processor

The processor is the part of an electronic computer that does the computation.

At any given moment, a processor only does one of a few different types of things.

  • jump to a particular location in memory

  • read a number from RAM

  • save a number to RAM

  • add two numbers together

  • compare two numbers to see which is larger

  • send a number to a particular device (e.g. a monitor)

  • receive a number from a particular device (e.g. a keyboard)

5 / 25

Processor

The processor is the part of an electronic computer that does the computation.

At any given moment, a processor only does one of a few different types of things.

  • jump to a particular location in memory

  • read a number from RAM

  • save a number to RAM

  • add two numbers together

  • compare two numbers to see which is larger

  • send a number to a particular device (e.g. a monitor)

  • receive a number from a particular device (e.g. a keyboard)

Ultimately, every statement in a computer program must be reduced to a sequence of these processor actions.

5 / 25

Programming

6 / 25

Programming

Purpose

Computer programming is the process of designing and building an executable computer program for accomplishing a specific computing result.

-Wikipedia

7 / 25

Programming

Levels of abstraction

Programmers have established increasingly higher levels of abstraction in order to make programming faster and more intuitive to humans.

8 / 25

Programming

Levels of abstraction

Programmers have established increasingly higher levels of abstraction in order to make programming faster and more intuitive to humans.

Low level:

  • Machine languages
  • Assembly languages
8 / 25

Programming

Levels of abstraction

Programmers have established increasingly higher levels of abstraction in order to make programming faster and more intuitive to humans.

Low level:

  • Machine languages
  • Assembly languages

High level:

8 / 25

Machine code

9 / 25

Machine code

Binary instructions

At the lowest level, a program can directly inform a computer what it should do by sending binary instructions directly to the processor.

9 / 25

Machine code

Binary instructions

At the lowest level, a program can directly inform a computer what it should do by sending binary instructions directly to the processor.

Example of a set of machine instructions for an x86 processor to move the number 97 to the AL memory register:

10110000 01100001
9 / 25

Machine code

Binary instructions

At the lowest level, a program can directly inform a computer what it should do by sending binary instructions directly to the processor.

Example of a set of machine instructions for an x86 processor to move the number 97 to the AL memory register:

10110000 01100001

The number 1011 is the machine instruction to do a move operation, 0000 is the address of the AL register, and 01100001 is the number 97 written in binary.

9 / 25

Machine code

Binary instructions

At the lowest level, a program can directly inform a computer what it should do by sending binary instructions directly to the processor.

Example of a set of machine instructions for an x86 processor to move the number 97 to the AL memory register:

10110000 01100001

The number 1011 is the machine instruction to do a move operation, 0000 is the address of the AL register, and 01100001 is the number 97 written in binary.

Each family of processors is designed to "understand" particular binary numbers to mean particular operations.

9 / 25

Assembly languages

10 / 25

Assembly languages

Mnemonics

It's easier for most humans to memorize words than binary numbers. Assembly languages provide mnemonics that a programmer can write, which are converted automatically to machine language equivalents.

11 / 25

Assembly languages

Mnemonics

It's easier for most humans to memorize words than binary numbers. Assembly languages provide mnemonics that a programmer can write, which are converted automatically to machine language equivalents.

Example of a set of assembly instructions for an x86 processor to place the number 97 in the memory register called AL:

MOV AL, 61h
11 / 25

Assembly languages

Mnemonics

It's easier for most humans to memorize words than binary numbers. Assembly languages provide mnemonics that a programmer can write, which are converted automatically to machine language equivalents.

Example of a set of assembly instructions for an x86 processor to place the number 97 in the memory register called AL:

MOV AL, 61h

MOV is a mnemonic for 1011, AL is a mnemnoic for 0000, and 61 is the number 97 written in hexadecimal notation.

11 / 25

Assembly languages

Assembling

Converting code written in assembly language to the equivalent machine language is known as assembling - it's essentially a search/replace operation where mnemonics are replaced with their machine code equivalents.

The program to do so is called an assembler.

12 / 25

High level languages

13 / 25

High level languages

Abstraction

High-level languages are more intuitive for most humans to read and write.

The written code is further abstracted away from the machine instructions the processor will ultimately execute.

14 / 25

High level languages

Example

Storing the number 97 in a memory register using the C programming language:

register int i = 97;
15 / 25

High level languages

Example

Storing the number 97 in a memory register using the C programming language:

register int i = 97;

Other high-level programming languages include C, C++, C#, Java, Python, Ruby, Scratch, Javascript, and PHP. All offer higher-level capabilities, such as looping, functions, branching, etc.

15 / 25

High level languages

Translation to machine code

Converting code written in a high-level language to the equivalent machine code is done via one of two processes:

  • compiling
  • interpreting
16 / 25

Compiling

17 / 25

Compiling

Concept

Code written in a high-level programming language is translated to its machine code equivalent all at once as a single bulk operation.

17 / 25

Compiling

Concept

Code written in a high-level programming language is translated to its machine code equivalent all at once as a single bulk operation.

  • a tool called a compiler reads the code, analyzes it, makes optimizations, and outputs a file with the required machine code instructions.
17 / 25

Compiling

Concept

Code written in a high-level programming language is translated to its machine code equivalent all at once as a single bulk operation.

  • a tool called a compiler reads the code, analyzes it, makes optimizations, and outputs a file with the required machine code instructions.

  • time-consuming

17 / 25

Compiling

Concept

Code written in a high-level programming language is translated to its machine code equivalent all at once as a single bulk operation.

  • a tool called a compiler reads the code, analyzes it, makes optimizations, and outputs a file with the required machine code instructions.

  • time-consuming

  • efficient

17 / 25

Compiling

Concept

Code written in a high-level programming language is translated to its machine code equivalent all at once as a single bulk operation.

  • a tool called a compiler reads the code, analyzes it, makes optimizations, and outputs a file with the required machine code instructions.

  • time-consuming

  • efficient

  • many errors easily detected during compilation

17 / 25

Compiling

Concept

Code written in a high-level programming language is translated to its machine code equivalent all at once as a single bulk operation.

  • a tool called a compiler reads the code, analyzes it, makes optimizations, and outputs a file with the required machine code instructions.

  • time-consuming

  • efficient

  • many errors easily detected during compilation

  • processor-specific

17 / 25

Compiling

C language

The C programming language is a classic example of a compiled language.

18 / 25

Compiling

C language

The C programming language is a classic example of a compiled language.

  • There are different compilers to translate C to machine code for each popular processor family.
18 / 25

Compiling

C language

The C programming language is a classic example of a compiled language.

  • There are different compilers to translate C to machine code for each popular processor family.

  • The high-level source code must often be tweaked to match the features of the target processor before compiled.

18 / 25

Compiling

C language

The C programming language is a classic example of a compiled language.

  • There are different compilers to translate C to machine code for each popular processor family.

  • The high-level source code must often be tweaked to match the features of the target processor before compiled.

  • Not very portable!

18 / 25

Compiling

C language

The C programming language is a classic example of a compiled language.

  • There are different compilers to translate C to machine code for each popular processor family.

  • The high-level source code must often be tweaked to match the features of the target processor before compiled.

  • Not very portable!

  • But fast!

18 / 25

Interpreting

19 / 25

Interpreting

Code written in a high-level programming language is translated to its machine code equivalent and executed as a series of small steps.

19 / 25

Interpreting

Code written in a high-level programming language is translated to its machine code equivalent and executed as a series of small steps.

  • a tool called an interpreter traditionally reads one statement of high-level code at a time, converts it to its machine code equivalent, and immediately executes that machine code.
19 / 25

Interpreting

Code written in a high-level programming language is translated to its machine code equivalent and executed as a series of small steps.

  • a tool called an interpreter traditionally reads one statement of high-level code at a time, converts it to its machine code equivalent, and immediately executes that machine code.

  • starts running immediately

19 / 25

Interpreting

Code written in a high-level programming language is translated to its machine code equivalent and executed as a series of small steps.

  • a tool called an interpreter traditionally reads one statement of high-level code at a time, converts it to its machine code equivalent, and immediately executes that machine code.

  • starts running immediately

  • not necessarily efficient, since only looking at one-statement at a time

19 / 25

Interpreting

Code written in a high-level programming language is translated to its machine code equivalent and executed as a series of small steps.

  • a tool called an interpreter traditionally reads one statement of high-level code at a time, converts it to its machine code equivalent, and immediately executes that machine code.

  • starts running immediately

  • not necessarily efficient, since only looking at one-statement at a time

  • does not traditionally identify errors in statements that have not yet been interpreted

19 / 25

Java

20 / 25

Java

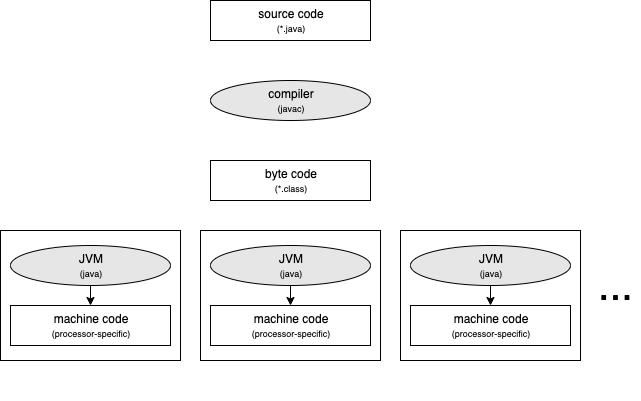

Write once, run anywhere

Unlike C code, Java source code is highly portable, being executable on machines with almost any processor. How is this possible?

20 / 25

Java

Write once, run anywhere

Unlike C code, Java source code is highly portable, being executable on machines with almost any processor. How is this possible?

  • Java is both compiled and interpreted
20 / 25

Java

Write once, run anywhere

Unlike C code, Java source code is highly portable, being executable on machines with almost any processor. How is this possible?

  • Java is both compiled and interpreted

  • Java high-level source code is compiled to byte code.

20 / 25

Java

Write once, run anywhere

Unlike C code, Java source code is highly portable, being executable on machines with almost any processor. How is this possible?

  • Java is both compiled and interpreted

  • Java high-level source code is compiled to byte code.

  • Java byte code is then interpreted to machine code by one of the Java Virtual Machines (JVM)

20 / 25

Java

Write once, run anywhere

Unlike C code, Java source code is highly portable, being executable on machines with almost any processor. How is this possible?

  • Java is both compiled and interpreted

  • Java high-level source code is compiled to byte code.

  • Java byte code is then interpreted to machine code by one of the Java Virtual Machines (JVM)

  • JVMs are created for most popular processor families

20 / 25

Java

Write once, run anywhere

Unlike C code, Java source code is highly portable, being executable on machines with almost any processor. How is this possible?

  • Java is both compiled and interpreted

  • Java high-level source code is compiled to byte code.

  • Java byte code is then interpreted to machine code by one of the Java Virtual Machines (JVM)

  • JVMs are created for most popular processor families

  • Thus Java byte code is highly portable

20 / 25

Java

Write once, run anywhere

Unlike C code, Java source code is highly portable, being executable on machines with almost any processor. How is this possible?

  • Java is both compiled and interpreted

  • Java high-level source code is compiled to byte code.

  • Java byte code is then interpreted to machine code by one of the Java Virtual Machines (JVM)

  • JVMs are created for most popular processor families

  • Thus Java byte code is highly portable

  • This is the Java paradigm!

20 / 25

Java

Write once, run anywhere

The Java paradigm

21 / 25

Java

Byte code and the JVM

Byte code is somewhere between machine code and high-level source in abstraction - an intermediate-level language.

22 / 25

Java

Byte code and the JVM

Byte code is somewhere between machine code and high-level source in abstraction - an intermediate-level language.

  • The Java Virtual Machines are virtual computers (a software simulating a physical computer), which are designed to view byte code as their native machine code.
22 / 25

Java

Byte code and the JVM

Byte code is somewhere between machine code and high-level source in abstraction - an intermediate-level language.

  • The Java Virtual Machines are virtual computers (a software simulating a physical computer), which are designed to view byte code as their native machine code.

  • These JVMs contain interpreters that can translate this byte code to the appropriate machine code for whichever physical processessor they are actually running on.

22 / 25

Java

Byte code and the JVM

Byte code is somewhere between machine code and high-level source in abstraction - an intermediate-level language.

  • The Java Virtual Machines are virtual computers (a software simulating a physical computer), which are designed to view byte code as their native machine code.

  • These JVMs contain interpreters that can translate this byte code to the appropriate machine code for whichever physical processessor they are actually running on.

  • Any programming language that can be compiled into Java byte code can run in a JVM... Groovy, Kotlin, and Scala are popular high-level languages with different syntax from Java that take advantage of this.

22 / 25

Java

Byte code and the JVM

When viewed as hexadecimal, all byte code files start with the text, cafe babe - this is a magic number.

cafe babe 0000 0034 001f 0700 0201 0033
6564 752f 6e79 752f 6373 2f66 6231 3235
382f 6469 6666 6572 656e 745f 7061 636b
6167 652f 5468 6972 6443 6c61 7373 436c
...

One of Java's inventors, James Gosling, has explained the origin of this.

23 / 25

Java

commands

The javac command compiles Java source code into Java byte code, while the java command sends the Java byte code to the JVM's interpreter for execution.

24 / 25

Java

commands

The javac command compiles Java source code into Java byte code, while the java command sends the Java byte code to the JVM's interpreter for execution.

foo@bar$ javac -d bin src/foo/bar/SomeFile.java
24 / 25

Java

commands

The javac command compiles Java source code into Java byte code, while the java command sends the Java byte code to the JVM's interpreter for execution.

foo@bar$ javac -d bin src/foo/bar/SomeFile.java
foo@bar$ java -cp bin foo.bar.SomeFile
24 / 25

Conclusions

25 / 25

Conclusions

You now have a basic understanding of compiling, interpreting, and how the Java paradigm fits into these schemes.

25 / 25
Paused

Help

Keyboard shortcuts

, , Pg Up, k Go to previous slide
, , Pg Dn, Space, j Go to next slide
Home Go to first slide
End Go to last slide
Number + Return Go to specific slide
b / m / f Toggle blackout / mirrored / fullscreen mode
c Clone slideshow
p Toggle presenter mode
t Restart the presentation timer
?, h Toggle this help
Esc Back to slideshow
